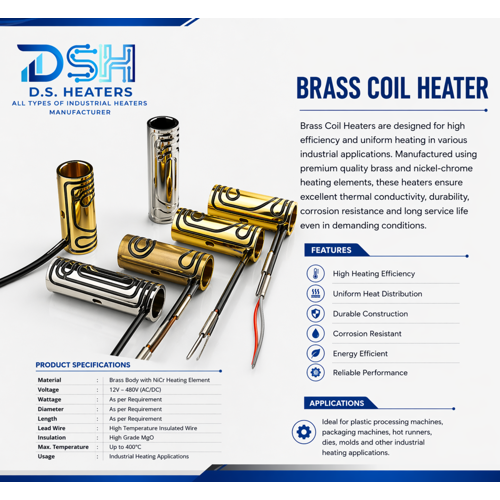

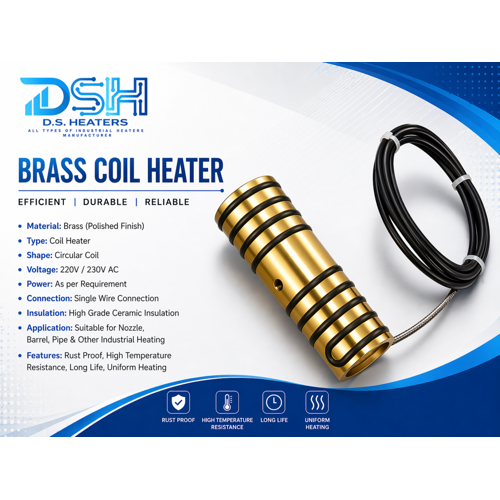

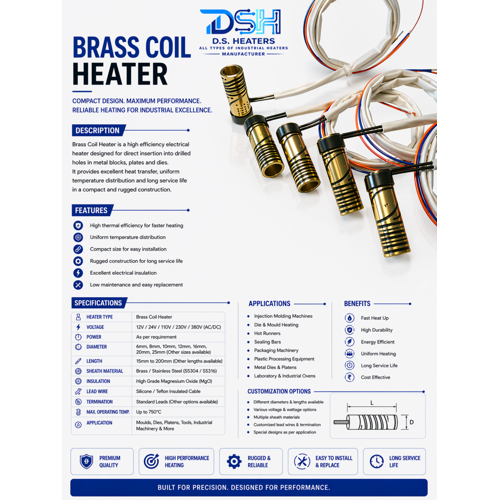

Hot Runner Brass Coil Heaters

About Hot Runner Brass Coil Heaters

BRASS COIL HEATER DESCRIPTION

Brass Coil Heater ek high-performance industrial heater hai jo uniform aur fast heating provide karta hai. Yeh specially design kiya jata hai nozzle, barrel, hot runner systems, dies aur moulds ke liye.

Isme premium brass sheath + nichrome heating element + high-grade MgO insulation use hota hai, jo excellent heat transfer, durability aur long life deta hai.

Compact design hone ki wajah se yeh heater tight spaces me bhi easily fit ho jata hai aur energy efficient bhi hota hai.

TECHNICAL SPECIFICATIONS

Material Grade (Sheath Grade)

• Brass: IS 319 / IS 410 Grade
• Optional: Brass + Nickel Chrome element

BSP Size (Thread Size agar applicable ho)

Coil heaters me normally BSP thread use nahi hota,
lekin agar threaded fitting chahiye to options:

• 1/4 BSP
• 3/8 BSP
• 1/2 BSP
• Custom size available as per requirement

MgO (Magnesium Oxide)

• Type: High Purity MgO Powder
• Grade: 99%+ purity
• Function:
  • Electrical insulation provide karta hai
  • Heat transfer improve karta hai
• Temperature resistance: Up to 800C (internal)

Capacity (Wattage / Power)

• Standard Range: 100W 2000W
• Voltage:
  • 220V / 230V AC
  • 380V / 415V AC (Industrial)
• Power Density:
  • 2 5 W/cm (standard)
  • High density available on demand

Other Important Specs

• Diameter: 6mm, 8mm, 10mm, 12mm
• Length: As per requirement
• Lead Type: SS braided / PTFE wire
• Max Temp:
  • Surface: 350400C
• Heating Element: NiCr (80/20)

Applications

• Injection Moulding Machines
• Hot Runner Systems
• Packaging Machines
• Extruder Machines
• Dies & Mould Heating
